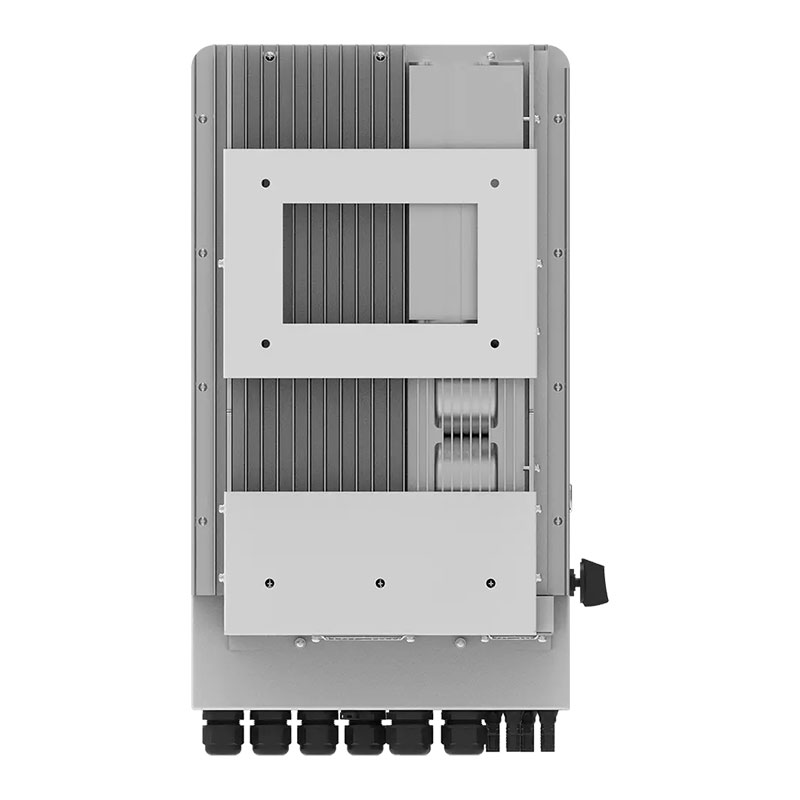

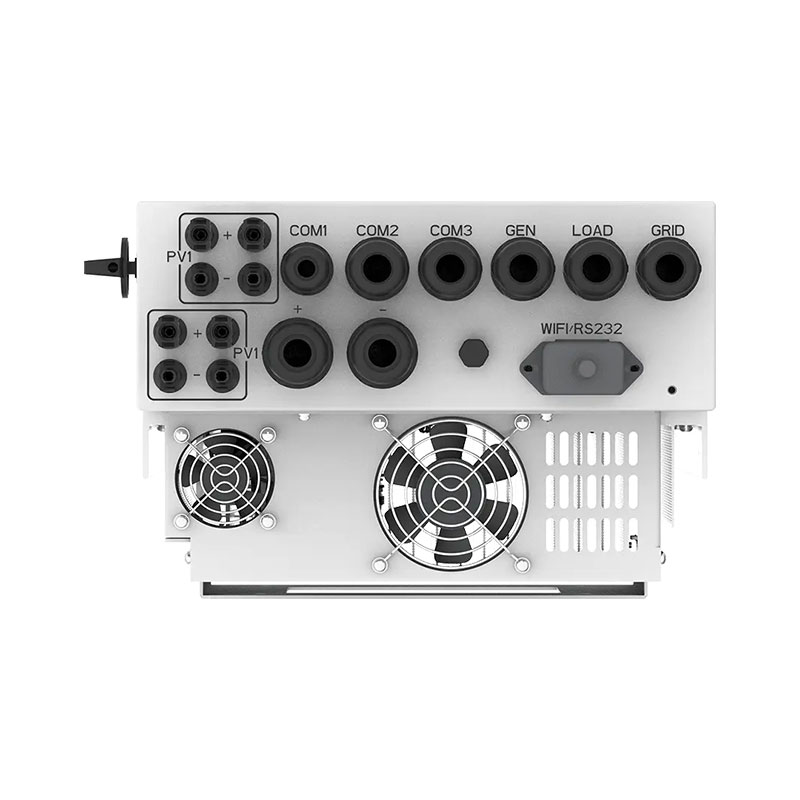

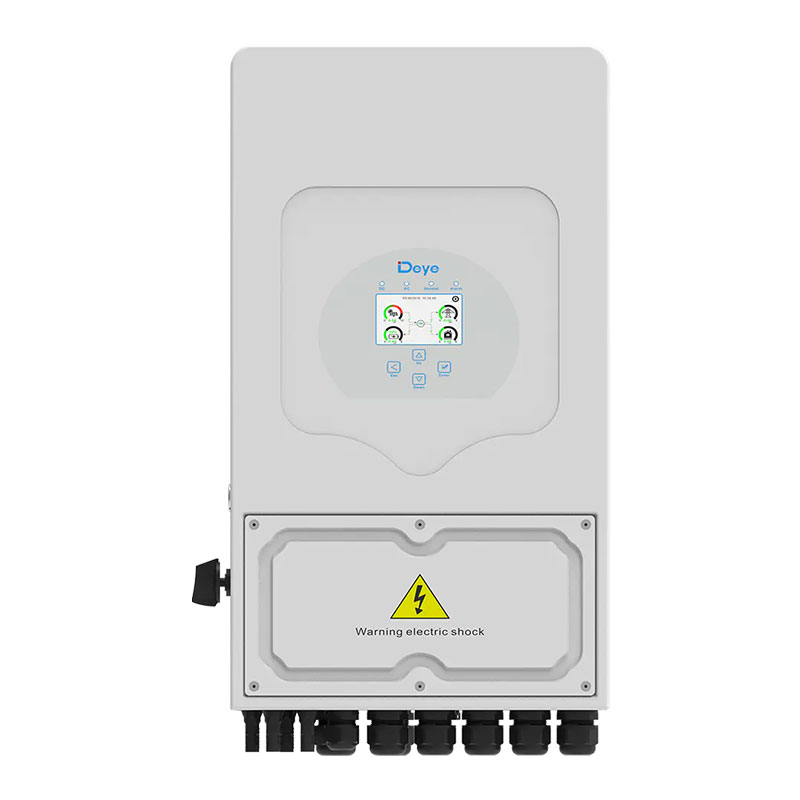

Sol-6K-SG03LP1-EU Hybrid Inverter

890~920€/pcVAT excluduntur

Inquisitionis Nobis Add Product
PREV: No previous product NEXT: 5KW Single Phase Low intentione Hybrid Inverter
  • depictio producti

Uni Z Sacra B.V.+39 3444606026

Uni Z Sacra B.V.[email protected]

Deye  SUN-6K-SG03LP1-EU invertor est systematis solaris residentialibus et commercialibus, energiae solaris auto-sumptionis, energiae independentiae confirmatae. Efficaciter procurat industriam a PV generationis ad repositionis altilium, ut continenter vim cotidie praebeat.

Res maiora

Coloris tactus LCD: Consectetur user interfacies cum IP65 praesidio ad vetustatem.
6 temporis spatia pro pugna praecipientes / exercentes: Optimized pugna procuratio pro industria efficientis utendo.
Maximilianus. 16pcs parallela Scalable design ad facultatem et flexibilitatem augendam.
DC et AC duobus compatibilitas: Retrofitum systematum solarium exsistentium ad integrationem inconsutilem.
48V humili intentione altilium: in tuto collocando et operando in tuto collocando.
Fast translatio ab in-eget ut off-eget modus: efficit convenientiam cum traditional fixum-frequency aer conditioners.

Exemplar SOL-3.6K
-SG03LP1-EU 		SOL-5K
-SG03LP1-EU 		SOL-6K
-SG03LP1-EU
Data input altilium
Type altilium Acidum plumbeum vel Lithium-ion
Pugna intentione Range (V) 40-60
Max.Charging Current (A) 90 120 135
Max.Discharging Current (A) 90 120 135
Incurrens Strategy pro Li-ion Pugna Accommodatio ad BMS auto-
Numerus Input Pugna 1
PVString Input Data
Max.DC Input Power (W) 4680 6500 7800
Max.DC InputVoltage(V) 500
Satus-usque intentione (V) 125
MPPTVoltage dolor (V) 150-425
Ratum DC Input Voltage(V) 370
Max.Operating PVInput Current (A) 13 13
Max.Input brevis Circuit Current (A) 17 17
No. de MPP Trackers /
No. chordarum per MPP Tracker 		2/1 1
AC Input/Output Data
Rated ACInput / Output Active Power (W) 3600 5000 6000
Max.ACInput/Output Apparens Power (VA) 3960 5500 6600
Rated ACInput / Output Current (A) 16.4/15.7 22.7/21.7 27.3/26.1
Max.ACInput/Output Current (A) 18/17.2 25/23.9 30/28.7
Maximilianus. Continua AC Passthrough (eget ad onus) (A) 35 40
PeakPower(off-eget)(W) II temporibus rated potentia, 10s
Power Factor De revolutionibus orbium coelestium 0,8 ducens ad 0.8 pigri
Rated Input/Output intentione/Range (V) 220/2300.85Un-1.1Un
RatedInput/Output eget Frequency / Range (Hz) 50/45-55,60/55-65
Forma Connection malesuada euismod L N PE
Total Current Harmonic Distortio THDi
DC Iniectio Current <0.5%In
Efficientia
Max.Efficiency 97.6%
Furo Efficens 96.5%
MPPT Efficiency >99%
Apparatus Praesidium

Integrated 		DC verticitatem inversa Connection Praesidium, AC Output Overcurrent Praesidium
AC Output Overvoltage Protection, AC Output Short Circuit Protection, Scelerisque Praesidium
DC Terminal Insulation Impedimentum Cras, DC Component Cras, Terrae Culpa Current Cras
Potentia Network Cras, Island Donec Cras, Terrae Culpa Detectio, DC Input Switch
Overvoltage Lond Occumbo Praesidium, Residua Current (RCD) Deprehensio, Surge praesidio gradu
Surge Donec Level TYPE II (DC), TYPE II (AC)
Interface
Communicationis Interface WIFI,RS485,can
Generalis Data
Temperature dolor operans (℃) -40 ad 60℃,>45℃ Derating
Licet Ambient Umor 0-100%
licet Altitude 2000m
sonitus(dB) <30
Ingressus Praesidium (IP) Rating IP65
Inverter Acta Non Isolated
Plus intentione Categoria OVCII(DC), OVCIII(AC)
Scrinium Size(WxHxDmm) 330-580×232 (Exclusis Connectors et brackets)
Pondus (kg) 25
Genus Refrigerationis Intelligentes Aeris Cooling
Warranty 5 Years/10 Years
Warantum Period Pendet in finali Installation Situ Invertoris, More Info Quaeso refer ad Warantum Policy
Eget Ordinatio IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002;
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Salus/EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
