Beyond Storage: How MS-EMS Turns Arbitrage and Demand Response Into Revenue

Storage as a Financial Asset, Not Just a Backup Device

A battery cabinet sitting idle between outages is a cost center. The same cabinet cycling daily against a time-of-use tariff, responding to grid signals, and adjusting its own schedule based on forecasted load is a revenue-generating asset. The difference between the two isn't the battery — it's what's running the control logic above it.

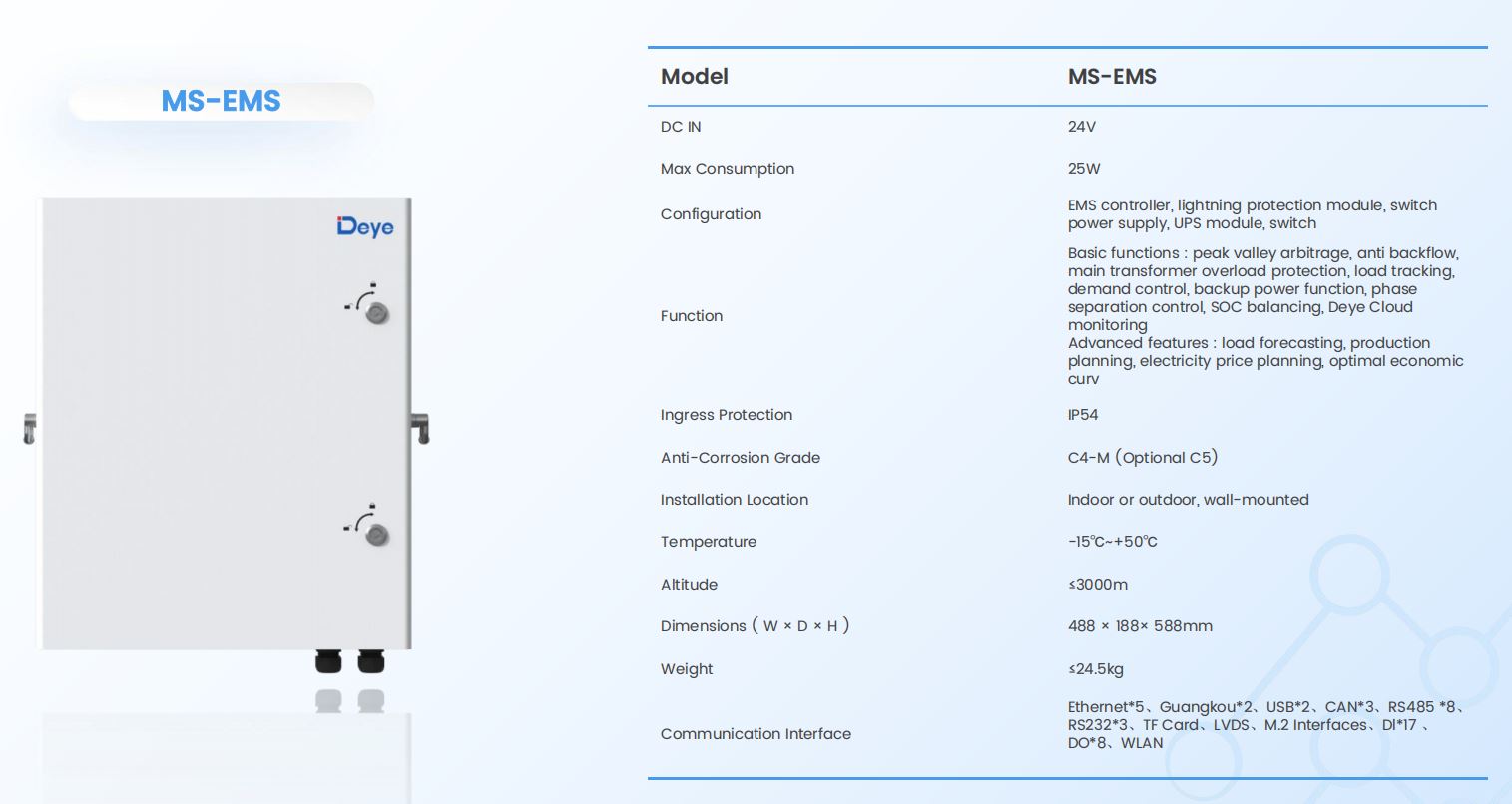

Deye's MS-EMS is built specifically to make that shift, layering a defined set of basic functions with an advanced tier aimed at active revenue capture rather than passive monitoring. This article works through what each function actually does and where the money comes from.

Peak-Valley Arbitrage: The Base Revenue Layer

The foundational function is straightforward in concept: charge when electricity is cheap, discharge when it's expensive. What makes it work reliably at 100kW/215kWh scale is the coordination between the EMS's arbitrage logic and real-time cell data from the BMS — the system has to know exactly how much usable capacity it has before committing to a discharge schedule against tomorrow's peak pricing window.

This is listed as a basic function, not an advanced one — meaning it runs without depending on cloud connectivity or additional configuration. For most C&I projects, this single function is what the payback calculation is built around before any other revenue stream is added.

Anti-Backflow, Overload Protection, and Load Tracking: The Functions That Keep Arbitrage Legal and Safe

Arbitrage only works if it doesn't violate the site's grid connection agreement or trip the main transformer. The EMS's anti-backflow function prevents stored energy from being exported back to the grid when that's not permitted, while main transformer overload protection and load tracking keep the discharge schedule inside what the facility's electrical infrastructure can actually handle.

These functions don't generate revenue directly, but without them the arbitrage function can't run at full aggressiveness — a site risking an overload trip or a backflow violation has to leave margin on the table. Reliable safety logic is what lets the arbitrage strategy actually use the full rated capacity.

Demand Response: Turning Grid Signals Into a Second Revenue Stream

Arbitrage runs against a known, published tariff schedule. Demand response is different — it's a reactive function, responding to real-time signals from the grid operator during periods of system stress, and it opens a separate revenue channel through demand response program participation rather than tariff timing alone.

Running both functions on the same cabinet means the same 100kW/215kWh asset earns from two distinct mechanisms — predictable daily arbitrage and event-based demand response — without needing separate hardware for each.

Load Forecasting and Production Planning: Why the Advanced Tier Matters

The basic function set runs reactively — arbitrage against a known tariff, protection against known limits. The advanced tier is forward-looking: load forecasting, production planning, electricity price planning, and an optimal economic curve calculation that projects the most profitable charge/discharge schedule before the day begins rather than reacting hour by hour.

This is the difference between a system that captures the arbitrage spread that happens to occur and one that actively schedules around a forecasted spread. For sites with variable PV generation feeding into the same cabinet, load forecasting also has to account for tomorrow's expected solar output when deciding how much grid-charged capacity to reserve overnight.

SOC Balancing and Fault Detection: Protecting the Asset That Generates the Revenue

Every function above assumes the battery keeps performing at its rated capacity. SOC balancing prevents individual cell groups from drifting out of alignment during repeated daily cycling, which is what arbitrage and demand response both put the battery through far more aggressively than a backup-only use case would. Fault detection and preventive maintenance functions catch degradation trends before they become failures that take the revenue-generating asset offline.

This is worth stating plainly: a cabinet cycled daily for arbitrage sees more stress than one held in reserve for outages. The functions that protect capacity retention aren't optional overhead here — they're what keeps the revenue model valid over the multi-year payback period.

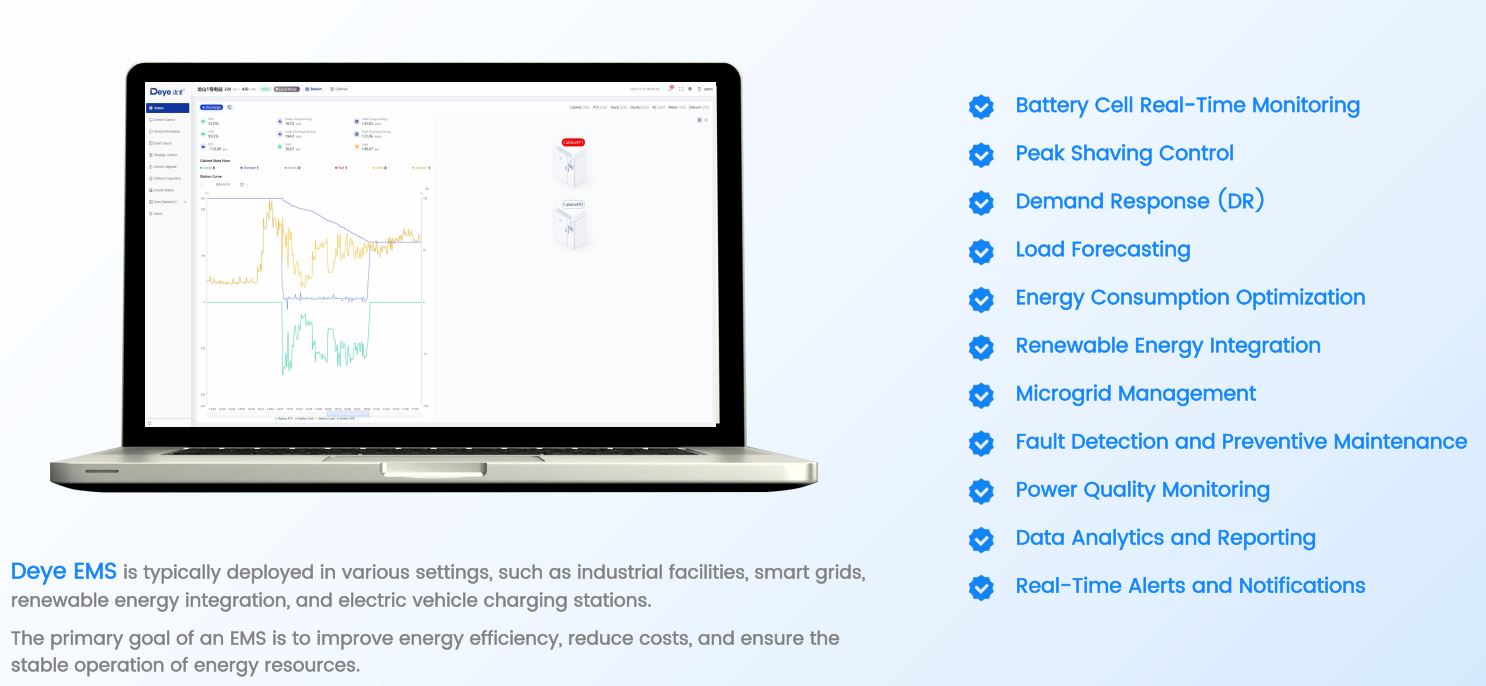

Deye Cloud: Where the Numbers Turn Into Decisions

The EMS runs the control logic on-site; Deye Cloud is the layer that turns that operational data into ongoing decisions. It's described as an AI-driven suite spanning plant design, device management, energy monitoring, energy dispatching, efficiency analysis, and cloud-edge coordination — with dynamic electricity price optimization and intelligent load forecasting as named capabilities.

The platform frames outcomes in explicitly financial terms — reduced peak consumption and costs, increased self-consumption, increased enterprise revenue — rather than purely technical monitoring metrics. That framing matters for how a site operator actually uses the dashboard day to day: it's built to answer "what did this save or earn," not just "is the system online."

Scaling Revenue: One EMS, 16 Local Controllers

Every function described above is bound by how far a single EMS can scale. One MS-EMS unit supports up to 16 local controllers, with each MS-G215/GS215 cabinet running one LC — meaning a project scaling toward the platform's 20-unit on-grid parallel maximum needs at most two EMS units to run the same arbitrage and demand response logic across the entire array.

What "Beyond Storage" Actually Means for the Bottom Line

None of the functions described here work in isolation — arbitrage needs the safety functions to run at full capacity, demand response needs SOC balancing to keep the battery available when called on, and the advanced forecasting tier needs Deye Cloud's data layer to actually produce a schedule worth following. The revenue case for a C&I storage cabinet isn't the battery spec sheet; it's whether the EMS coordinating it can run all of these functions together without one undermining another.

For a project team building out the payback model, the practical next step is checking which of these functions are active by default versus configured per site — a question worth working through against the full C&I ESS solution lineup, and alongside how the power conversion system executes the EMS's pricing and dispatch strategy in real time.
